Impeller
Rx PTCA Balloon Catheter

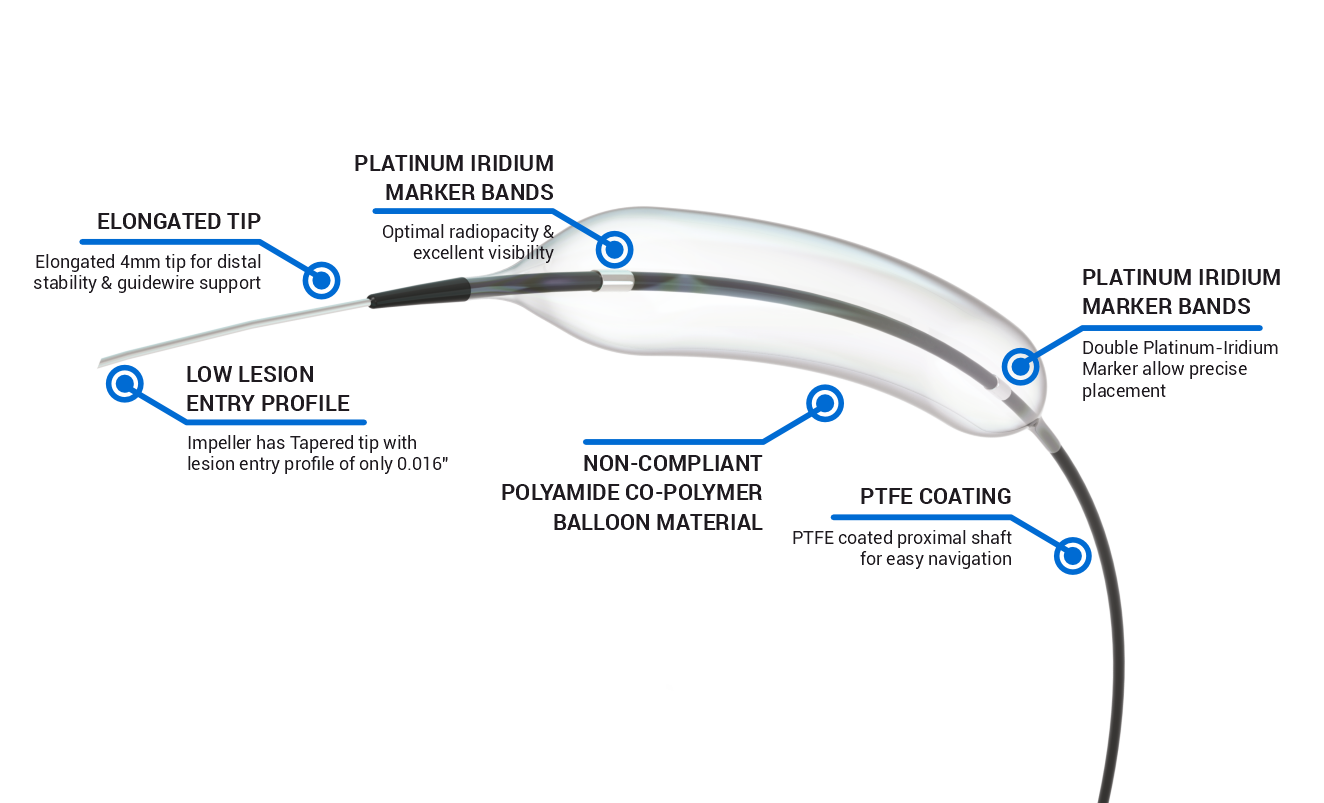

Impeller is specifically engineered for crossing most difficult lesions with crossing profile of 0.027”, it also provides superior tracking through tortuous anatomy of vessel with average requirement of only 1.25N Force.
Specifications
14 ATM
145 cm
5 Sec
Tri-fold
20 ATM
90:10
1.9 F
0.014"
PTFE Coated
0.7mm
0.016"
3±1 mm
2.6 F
DOWNLOAD e-BROCHURE
We strive to provide you with the detailed information of your desired choice of product.
The product story folded in the brochure to unfold the same download e-Brochure and know more about the key features, benefits, technical specifications and others.
Inquiry Now Download e-BrochureMore awesome features
See some of our awesome key features
Technical Data
Compliance Chart:
| Pressure (bar) |
Diameter (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1.00mm | 1.50mm | 2.00mm | 2.25mm | 2.50mm | 2.75mm | 3.00mm | 3.50mm | 4.00mm | 4.50mm | |
| 4 | 0.93 | 1.31 | 1.85 | 2.01 | 2.24 | 2.37 | 2.71 | 3.03 | 3.52 | 3.91 |
| 6 | 0.94 | 1.34 | 1.90 | 2.06 | 2.29 | 2.50 | 2.79 | 3.12 | 3.63 | 4.06 |
| 8 | 0.95 | 1.38 | 1.91 | 2.10 | 2.36 | 2.55 | 2.85 | 3.24 | 3.74 | 4.16 |
| 9 | 0.95 | 1.39 | 1.92 | 2.12 | 2.39 | 2.60 | 2.87 | 3.28 | 3.79 | 4.22 |
| 10 | 0.96 | 1.40 | 1.93 | 2.14 | 2.42 | 2.65 | 2.91 | 3.32 | 3.82 | 4.28 |
| 11 | 0.97 | 1.41 | 1.95 | 2.17 | 2.44 | 2.67 | 2.93 | 3.35 | 3.85 | 4.34 |
| 12 | 0.98 | 1.42 | 1.97 | 2.20 | 2.46 | 2.69 | 2.96 | 3.39 | 3.88 | 4.40 |
| 13 | 0.99 | 1.44 | 1.98 | 2.22 | 2.48 | 2.71 | 2.98 | 3.43 | 3.93 | 4.45 |
| 14 | 1.00 | 1.50 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.50 | 4.00 | 4.50 |
| 15 | 1.01 | 1.51 | 2.02 | 2.28 | 2.52 | 2.78 | 3.02 | 3.50 | 4.01 | 4.54 |
| 16 | 1.02 | 1.52 | 2.05 | 2.30 | 2.54 | 2.80 | 3.05 | 3.52 | 4.04 | 4.57 |
| 17 | 1.03 | 1.53 | 2.06 | 2.31 | 2.56 | 2.82 | 3.06 | 3.55 | 4.06 | 4.62 |
| 18 | 1.04 | 1.54 | 2.07 | 2.33 | 2.57 | 2.84 | 3.08 | 3.57 | 4.08 | 4.64 |
| 19 | 1.04 | 1.55 | 2.09 | 2.34 | 2.59 | 2.85 | 3.10 | 3.60 | 4.10 | 4.68 |
| 20 | 1.05 | 1.57 | 2.10 | 2.35 | 2.60 | 2.87 | 3.12 | 3.62 | 4.13 | 4.71 |
| 21 | 1.05 | 1.57 | 2.12 | 2.37 | 2.62 | 2.89 | 3.14 | 3.65 | 4.14 | 4.76 |
| 22 | 1.06 | 1.58 | 2.13 | 2.39 | 2.63 | 2.91 | 3.15 | 3.68 | 4.16 | 4.78 |
| 23 | 1.07 | 1.58 | 2.15 | 2.41 | 2.64 | 2.92 | 3.19 | 3.71 | 4.19 | 4.82 |
| 24 | 1.08 | 1.59 | 2.17 | 2.42 | 2.66 | 2.94 | 3.22 | 3.74 | 4.21 | 4.84 |
| 1.00mm , 1.50mm and 4.50mm sizes are approved by CDSCO |
| Nominal Pressure (NP) | Rated Burst Pressure (RBP) |
Ordering Information
| Length | Diameter (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1.00mm | 1.50mm | 2.00mm | 2.25mm | 2.50mm | 2.75mm | 3.00mm | 3.50mm | 4.00mm | 4.50mm | |
| 07mm | IP 0710 | IP 0715 | IP 0720 | IP 0722 | IP 0725 | IP 0727 | IP 0730 | IP 0735 | IP 0740 | IP 0745 |
| 10mm | IP 1010 | IP 1015 | IP 1020 | IP 1022 | IP 1025 | IP 1027 | IP 1030 | IP 1035 | IP 1040 | IP 1045 |
| 12mm | IP 1210 | IP 1215 | IP 1220 | IP 1222 | IP 1225 | IP 1227 | IP 1230 | IP 1235 | IP 1240 | IP 1245 |
| 14mm | IP 1410 | IP 1415 | IP 1420 | IP 1422 | IP 1425 | IP 1427 | IP 1430 | IP 1435 | IP 1440 | IP 1445 |
| 16mm | IP 1610 | IP 1615 | IP 1620 | IP 1622 | IP 1625 | IP 1627 | IP 1630 | IP 1635 | IP 1640 | IP 1645 |
| 18mm | IP 1810 | IP 1815 | IP 1820 | IP 1822 | IP 1825 | IP 1827 | IP 1830 | IP 1835 | IP 1840 | IP 1845 |
| 20mm | IP 2010 | IP 2015 | IP 2020 | IP 2022 | IP 2025 | IP 2027 | IP 2030 | IP 2035 | IP 2040 | IP 2045 |
| 25mm | IP 2510 | IP 2015 | IP 2520 | IP 2522 | IP 2525 | IP 2527 | IP 2530 | IP 2535 | IP 2540 | IP 2545 |
| 29mm | IP 2910 | IP 2915 | IP 2920 | IP 2922 | IP 2925 | IP 2927 | IP 2930 | IP 2935 | IP 2940 | IP 2945 |
| 34mm | IP 3410 | IP 3415 | IP 3420 | IP 3422 | IP 3425 | IP 3427 | IP 3430 | IP 3435 | IP 3440 | IP 3445 |
| 39mm | IP 3910 | IP 3915 | IP 3920 | IP 3922 | IP 3925 | IP 3927 | IP 3930 | IP 3935 | IP 3940 | IP 3945 |
| 43mm | IP 4310 | IP 4315 | IP 4320 | IP 4322 | IP 4325 | IP 4327 | IP 4330 | IP 4335 | IP 4340 | IP 4345 |
| 45mm | IP 4510 | IP 4515 | IP 4520 | IP 4522 | IP 4525 | IP 4527 | IP 4530 | IP 4535 | IP 4540 | IP 4545 |
| 49mm | IP 4910 | IP 4915 | IP 4920 | IP 4922 | IP 4925 | IP 4927 | IP 4930 | IP 4935 | IP 4940 | IP 4945 |
Note: 1.00mm, 1.50mm and 4.50mm sizes are approved by CDSCO.
